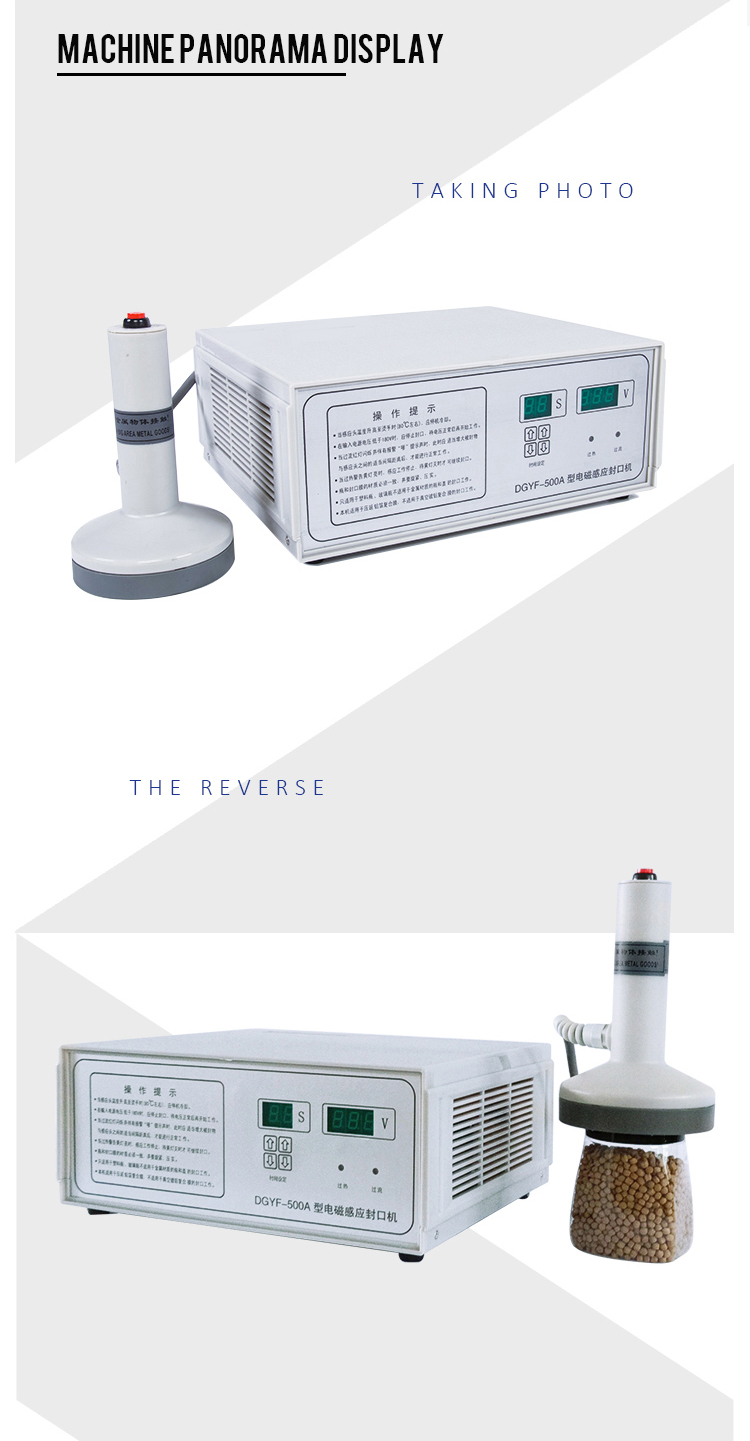

DGYF-500D semi-auto Portable induction heating Sealing Mach

Products Information:
The machine is mainly applicable of capping operation of non-metal bottleneck (i.e. plastics, glass) which features of flat threaded cap, but not applicable of capping operation of metal & non-threaded pressing cap, cap with φ20-60mm diameter and active handle, high cap with over 3 mm spacing between cap surface & bottleneck after screwed in, Especially, it is suitable for the customers who carrying out continuous capping operation for large output and lot.

Portable Induction sealer DGYF-500A/DGYF-500B/DGYF-500C/DGYF-500D
Model	DGYF-500A	DGYF-500B	DGYF-500C	DGYF-500D
Power supply  (V/Hz)	AC  200±10%  50/60
Power   (W)	500
Working current  (A)	<8
Control circuit	Digital transistor circuit
Cooling way	Forced cooling fan
Model form	Portable
Sealing material	Of plastic molding
The sealing diameter  (mm)	φ20~φ100	φ15~φ35	φ60~φ130	φ20~φ60
The sealing speed	Depending on the proficiency
The sealing time  (s/time)	0~3.9	0~3.9	0~9.9	0~3.9
Extemal dimensions  (L*W*H)(mm)	340*290*150
Net weight  (Kg)	5
