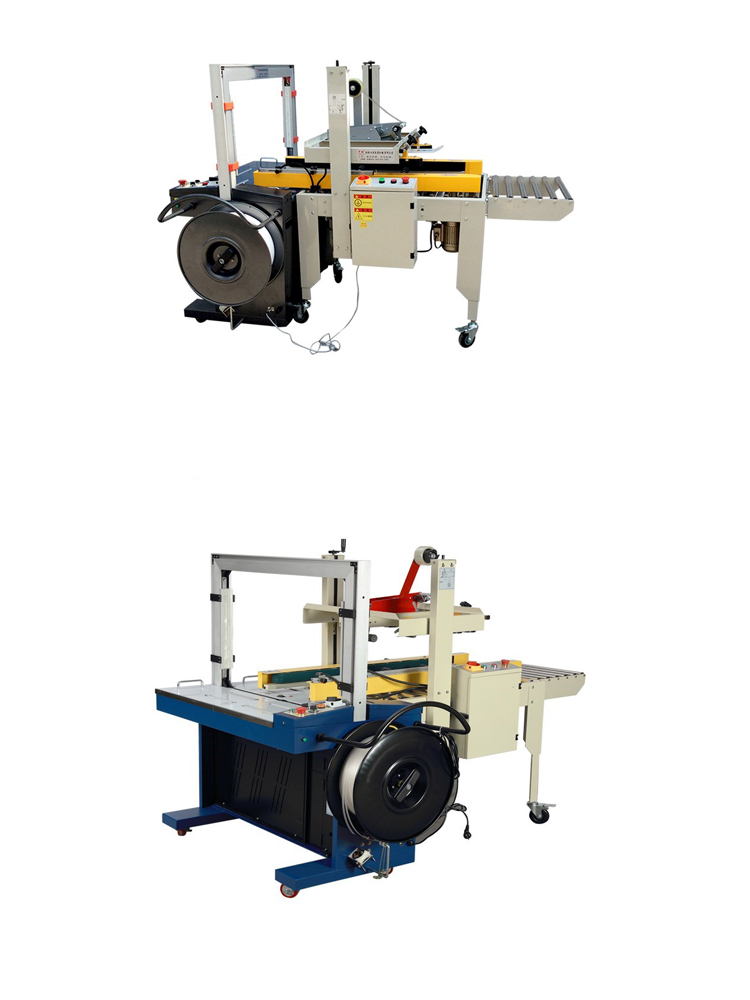

FXC5050 Carton Box Sealing Taping Machine and DBA 150 Strapp

FXC5050 Carton Box Sealing Taping Machine

1.FXC5050 carton sealing machine is mainly used in sealing and packing cartons, which can be used either independently or as a necessary part of a production line.

2.Conveyor belt is mounted in left & right side.

3.Carton is transmitted by two side's conveyor belts.

4.Adjust sealing height and width by hand according to the size of carton, then put carton on worktable, and carton will be transmitted through and sealed with tape automatically at the same time.

Parameters of Semi-Automatic CE Certification FXC5050 Carton Box Sealing Taping Machine

Model	FXC5050
Power source	220/110V 50/60HZ 240W
Sealing capacity	1000pcs(standard size) per hour
Width of tape	36, 48, 60mm
Way of transmission	Left-right side transmission mechanism
Max. size of case	500×500 mm (W×H)
Min. size of case	120×110 mm (W×H)
Overall size	1850×835×1100~1720 mm (L×W×H)
Weight	120 Kg





 DBA-150 electric automatic carton PP belt strapping machine adopts international brand electrical parts which ensure the machines good quality.
7.Electrical accessories: “MITSUBISHI” PLC control, and “ORMON” photoelectric switch control, schneider relay.
8.It can be used individually, and equipped with designed conveyor to fulfill unmanned strapping system.
9.Add on a safety device, built for 24 hours continuous operation.


Power	400W
Voltage	110/220V/50/60HZ
Strap width	9-12mm
Min strap size	80*60mm
Max strap size	less than 800*600mm
Strapping speed	less than 2.5sec/cycle
Max frame size	800*600mm
Height of table	750mm
Loading capacity	80kg
Dimensions	1400*620*1435mm
Weight	150kg
