Automatic viscous liquid/paste bottle filling machine for li

Automatic viscous liquid/paste bottle filling machine for li

Share to:
    Payment Type:  FOB CIF, CFR, DAP
    Incoterm:  FOB CIF, CFR, DAP
    Min. Order:  1
    Delivery Time:  15 DAYS

Product Description

Product Description

This series of liquid & paste filling machine is suitable for filling different types of liquid & paste products in daily chemical, food, grease, medicine, pesticide and other industries. The piston injection filling and three way one-way valve device has the advantages of high filling accuracy, convenient installation and debugging, simple cleaning and cleaning, and no leakage.

Note: Filling heads can be customized, 2, 4, 6, 8, etc.
Product Parameters

Product Model GP-APF6
Voltage 220V/110V 50/60Hz
Power 0.5KW
Dimension(L*W*H) 2600(L)x1500(W)x1900(H)MM
Weight 750kg

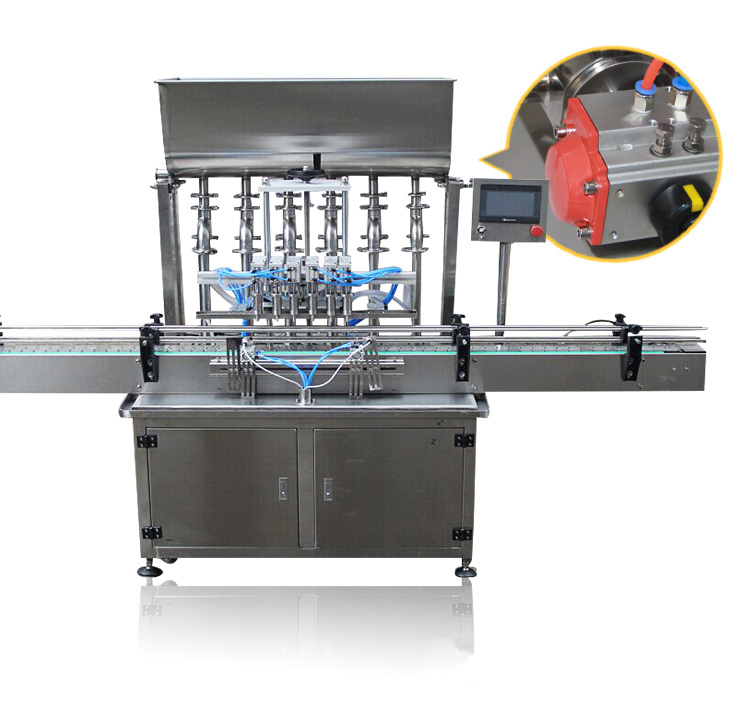

Model Six head straight paste filling machine
Air pressure for liquid 0.4-0.6Mpa
Air pressure for paste 0.5-0.7Mpa
Speed 50-60bottles/min
Accuracy ±1%
Filling range
5-100ml  10-300ml  50-500ml  100-1000ml  500-3000ml  1000-5000ml
Numberof filling heads 2 (can be customized)

Features

(1) 2-8 heads linear piston filler, suitable for various kinds of plastic and glass containers

(2) Bottle filling machine PLC controlled.

(3) The filling precision is 1% more or less

(4) The surface of machine is made of high quality stainless steel .

(5) Safety design for no bottle, no filling.

(6) Widely applicable in low or high viscous liquid, such as :edible oil, lubrication oil, shampoo, etc.
