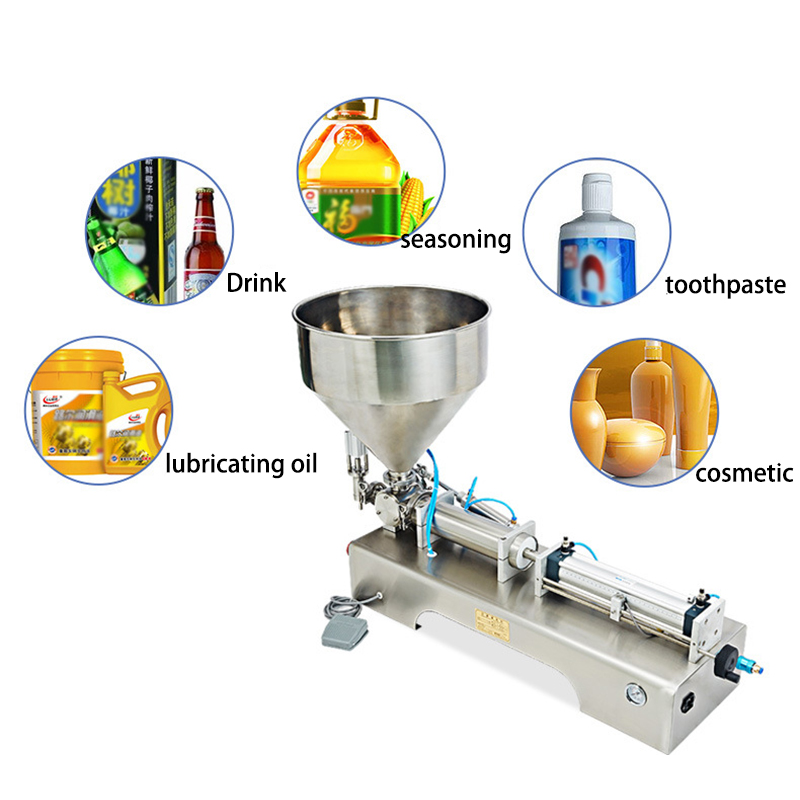

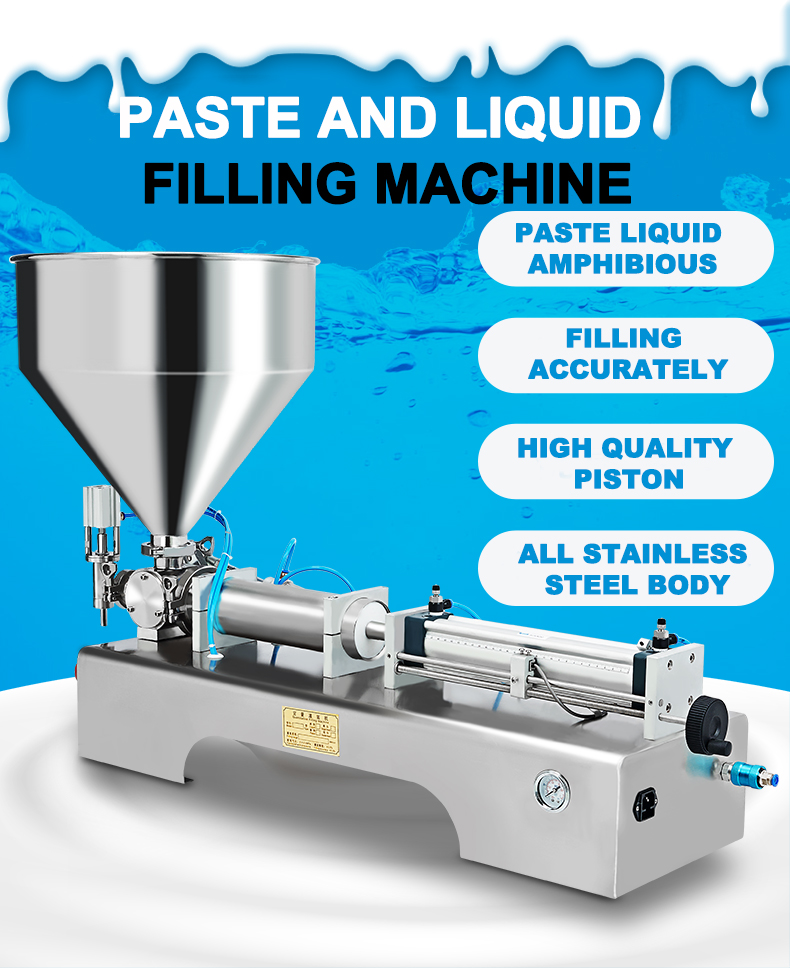

One nozzle Paste Filling Machine for Cheeze, Sauce, Oitnment

Application Range:
Applied in medical, chemistry, foodstuff, pesticides and special industries. It is an ideal equipment for filling the high viscosity fluid. As this full pneumatic filling machine is working without the electricity, it is very safe to operate and the personal design better meets the demands of morden enterprises.

Advantages:
1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO and Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 316L stainless steel, meet the GMPs requirements.
3. Filling capacity, filling speed can be adjusted, filling accuracy is high.
4. Adopt the device like leak-proof, Anti-drawing and lifting of filling.
5. Machine work performance is very stable and not easy to break as there's no electrical parts inside.

Operation:
There is a switch for auto and manual function.
You can set the interval time to let it fill continuously or use the pedal switch to control each filling time.

Shipment:
Most models are in stock, if not in stock, production time is 3-5 working days.
Sea shipment is suitable for large quantity, and express door-to-door shippment is good for small quantity.
We usually use DHL, TNT, Fedex, EMS for fast shipment with good shipping freight.

Technical Parameter:


Air Pressure	0.4-0.6MPa
Filling Speed	10-20 Bottles/ Min for one bottle
Filling Accuracy	±1
Chosen model	10-100ml 20-300ml 50-500ml 100-1000ml
Warranty	1 year
Dimension	1200 X 650 X 400 (mm)    70KGs
Lead Time	5-7 Days
Loading Port	Shanghai or Ningbo Port
